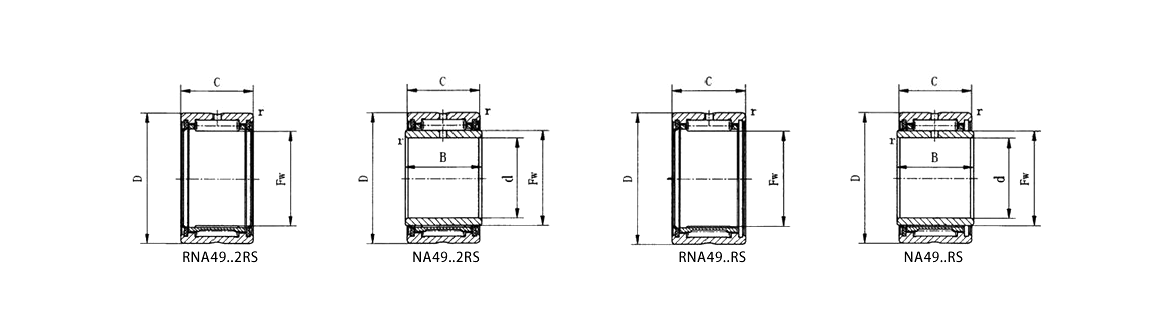

RNA49..2RS | NA49..2RS | RNA49..RS | NA49..RS

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Bearing Designation		Boundary Dimensions(mm)						Basic Load Rating(kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	With Inner	Without Inner	d	Fw	B	D	C	min	C Dynamic	Co Static	Limiting Speed (rpm)
NA49002RS	24.5	RNA49002RS	16.3	NA4900 RS	RNA4900 RS	10	14	14	22	13	0.3	6.56	6.96	11200
NA49012RS	27.5	RNA49012RS	17.9	NA4901 RS	RNA4901 RS	12	16	14	24	13	0.3	6.88	7.6	9600
		RNA49/142RS	19.7		RNA49/14 RS		18		26	13	0.3	7.52	8.8	8800
NA49022RS	36	RNA49022RS	21.5	NA4902 RS	RNA4902 RS	15	20	14	28	13	0.3	7.84	9.52	7600
NA49032RS	39.5	RNA49032RS	23	NA4903 RS	RNA4903 RS	17	22	14	30	13	0.3	8.4	10.72	6800
NA49042RS	78.5	RNA49042RS	54.5	NA4904 RS	RNA4904 RS	20	25	18	37	17	0.3	14.64	16.72	6000
NA49/222RS	87.5	RNA49/222RS	55.5	NA49/22 RS	RNA49/22 RS	22	28	18	39	17	0.3	14.96	19.28	5600
NA49052RS	92.5	RNA49052RS	63	NA4905 RS	RNA4905 RS	25	30	18	42	17	0.3	16.56	20.48	5200
NA49/282RS	101	RNA49/282RS	75.5	NA49/28 RS	RNA49/28 RS	28	32	18	45	17	0.3	17.12	21.84	4800
NA49062RS	106	RNA49062RS	71	NA4906 RS	RNA4906 RS	30	35	18	47	17	0.3	17.6	23.2	4400
NA49/322RS	167	RNA49/322RS	94.5	NA49/32 RS	RNA49/32 RS	32	40	21	52	20	0.6	23.92	36	4000
NA49072RS	179	RNA49072RS	112	NA4907 RS	RNA4907 RS	35	42	21	55	20	0.6	24.56	37.76	3600
		RNA49/382RS	119		RNA49/38 RS		45		58	20	0.6	25.84	41.12	3200
NA49082RS	245	RNA49082RS	150	NA4908 RS	RNA4908 RS	40	48	23	62	22	0.6	30.32	47.6	3200
		RNA49/422RS	173		RNA49/42 RS		50		65	22	0.6	31.04	79.6	3200
NA49092RS	290	RNA49092RS	197	NA4909 RS	RNA4909 RS	45	52	23	68	22	0.6	31.68	51.76	2800
		RNA49/482RS	187		RNA49/48 RS		55		70	22	0.6	32.32	54	2800
NA49102RS	295	RNA49102RS	177	NA4910 RS	RNA4910 RS	50	58	23	72	22	0.6	33.68	58	2800
		RNA49/522RS	200		RNA49/52 RS		60		75	22	0.6	34.32	60.08	2400
NA49112RS	415	RNA49112RS	265	NA4911 RS	RNA4911 RS	55	63	26	80	25	1	42.56	69.92	2400
		RNA49/582RS	275		RNA49/58 RS		65		82	25	1	43.6	72.8	2400
NA49122RS	445	RNA49122RS	285	NA4912 RS	RNA4912 RS	60	68	26	85	25	1	44.48	75.68	2400
		RNA49/622RS	320		RNA49/62 RS		70		88	25	1	45.44	78.56	2000
NA49132RS	475	RNA49132RS	325	NA4913 RS	RNA4913 RS	65	72	26	90	25	1	46.4	81.6	2000

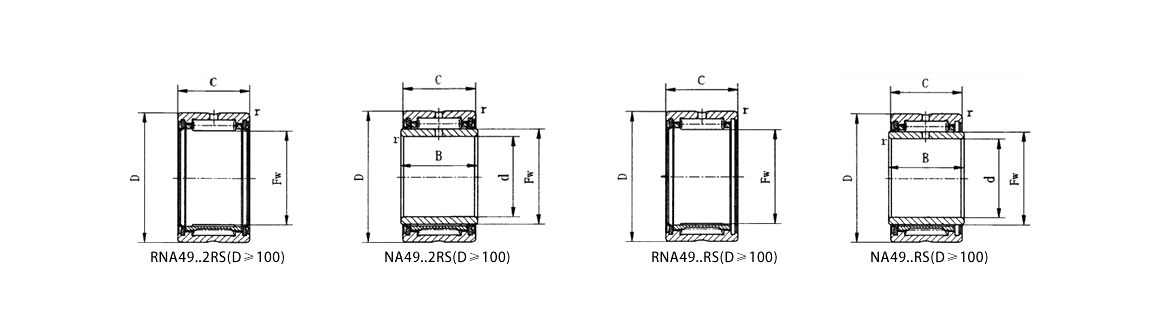

RNA49..2RS(D≥100) | NA49..2RS(D≥100) | RNA49..RS(D≥100) | NA49..RS(D≥100)

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Bearing Designation		Boundary Dimensions(mm)						Basic Load Rating(kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	With Inner	Without Inner	d	Fw	B	D	C	min	C Dynamic	Co Static	Limiting Speed (rpm)
		RNA49/682RS	465		RNA49/68 RS		75		95	30	1	60.24	108.8	2000
NA49142RS	770	RNA49142RS	495	NA4914 RS	RNA4914 RS	70	80	31	100	30	1	62.72	116.8	2000
NA49152RS	815	RNA49152RS	520	NA4915 RS	RNA4915 RS	75	85	31	105	30	1	64.96	124.8	1600
NA49162RS	860	RNA49162RS	545	NA4916 RS	RNA4916 RS	80	90	31	110	30	1	65.84	128.8	1600
		RNA49/822RS	570		RNA49/82 RS		95		115	30	1	67.84	136.8	1600
NA49172RS	1300	RNA49172RS	695	NA4917 RS	RNA4917 RS	85	100	36	120	35	1.1	84	184	1520
NA49182RS	1360	RNA49182RS	730	NA4918 RS	RNA4918 RS	90	105	36	125	35	1.1	86.4	193.6	1440
NA49192RS	1420	RNA49192RS	760	NA4919 RS	RNA4919 RS	95	110	36	130	35	1.1	89.6	204	1360
NA49202RS	1980	RNA49202RS	1200	NA4920 RS	RNA4920 RS	100	115	41	140	40	1.1	109.6	242.4	1360
NA49222RS	2150	RNA49222RS	1280	NA4922 RS	RNA4922 RS	110	125	41	150	40	1.1	114.4	263.2	1200
NA49242RS	2990	RNA49242RS	1940	NA4924 RS	RNA4924 RS	120	135	46	165	45	1.1	145.6	333.6	1120
NA49262RS	4080	RNA49262RS	2360	NA4926RS	RNA4926 RS	130	150	51	180	50	1.5	168.8	417.6	1040
NA49282RS	4340	RNA49282RS	2510	NA4928 RS	RNA4928 RS	140	160	51	190	50	1.5	174.4	448	960

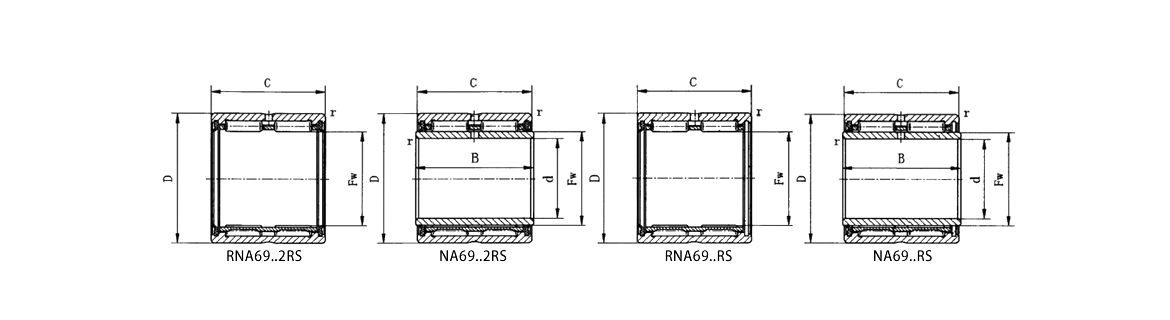

RNA69..2RS | NA69..2RS | RNA69..RS | NA69..RS

Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	Bearing Designation		Boundary Dimensions(mm)						Basic Load Rating(kN)		Limiting Speed (rpm)
Bearing Designation With Inner	Mass (g)	Bearing Designation Without Inner	Mass (g)	With Inner	Without Inner	d	Fw	B	D	C	min	C Dynamic	Co Static	Limiting Speed (rpm)
NA69012RS	45.5	RNA69012RS	30	NA6901 RS	RNA6901 RS	12	16	23	24	22	0.3	12.72	16.64	9600
NA690221RS	62.5	RNA69022RS	37.5	NA6902 RS	RNA6902 RS	15	20	24	28	23	0.3	15,04	22.08	7600
NA69032RS	68.5	RNA69032RS	40.5	NA6903 RS	RNA6903 RS	17	22	24	30	23	0.3	16.16	24.96	6800
NA69042RS	137	RNA69042RS	95.5	NA6904 RS	RNA6904 RS	20	25	31	37	30	0.3	26.96	36.32	6000
NA69/222RS	153	RNA69/222RS	97.5	NA69/22 RS	RNA69/22 RS	22	28	31	39	30	0.3	27.6	42.4	5600
NA69052RS	162	RNA69052RS	111	NA6905 RS	RNA6905 RS	25	30	31	42	30	0.3	32	47.84	5200
NA69/282RS	177	RNA69/282RS	133	NA69/28 RS	RNA69/28 RS	28	32	31	45	30	0.3	31.76	48.24	4800
NA69062RS	185	RNA69062RS	125	NA6906 RS	RNA6906 RS	30	35	31	47	30	0.3	32.72	51.44	4400
NA69/322RS	300	RNA69/322RS	170	NA69/32 RS	RNA69/32 RS	32	40	37	52	36	0.6	41.04	72.08	4000
NA69072RS	320	RNA69072RS	200	NA6907 RS	RNA6907 RS	35	42	37	55	36	0.6	42.08	75.52	3600
NA69082RS	440	RNA69082RS	270	NA6908 RS	RNA6908 RS	40	48	41	62	40	0.6	52	95.2	3200
NA69092RS	520	RNA69092RS	355	NA6909 RS	RNA6909 RS	45	52	41	68	40	0.6	54.4	103.2	2800
NA69102RS	530	RNA69102RS	320	NA6910 RS	RNA6910 RS	50	58	41	72	40	0.6	57.76	116	2800
NA69112RS	730	RNA69112RS	470	NA6911 RS	RNA6911 RS	55	63	46	80	45	1	72.96	140	2400
NA69122RS	785	RNA69122RS	505	NA6912 RS	RNA6912 RS	60	68	46	85	45	1	76.24	151.2	2400
NA69132RS	845	RNA69132RS	580	NA6913 RS	RNA6913 RS	65	72	46	90	45	1	79.52	163.2	2000
NA69142RS	1400	RNA69142RS	910	NA6914 RS	RNA6914 RS	70	80	55	100	54	1	100.8	229.6	2000
NA69152RS	1480	RNA69152RS	960	NA6915 RS	RNA6915 RS	75	85	55	105	54	1	104	244	1600
NA69162RS	1570	RNA69162RS	1010	NA6916 RS	RNA6916 RS	80	90	55	110	54	1	108	258.4	1600
NA69172RS	2360	RNA69172RS	1300	NA6917 RS	RNA6917 RS	85	100	64	120	63	1.1	136.8	364.8	1520
NA69182RS	2480	RNA69182RS	1360	NA6918 RS	RNA6918 RS	90	105	64	125	63	1.1	1408	384	1440
NA69192RS	2600	RNA69192RS	1420	NA6919 RS	RNA6919 RS	95	110	64	130	63	1.1	144	402.4	1360
